By Rail to Maymyo

On Tuesday, 19th February 2013 I travelled from Mandalay to Maymyo (as the British called it - we should now say 'Pyin Oo Lwin') by train. A general description of the day is given in my post here. This article covers more technical aspects of the journey.

Whereas Mandalay is situated on the plain adjacent to the River Ayeyarwaddy, Maymyo is up in the mountains, at an elevation of 3506 feet above sea level. It required some ingenuity on the part of the builders of the railway to build a line suitable for normal locomotives. Beyond Sedaw, they used a zig-zag where trains shuffles backwards and forwards between four 'Reversing Stations' in order to gain height before completing the journey to Maymyo. The layout of the zig-zag section is shown below.


Plan of the Zig-Zag railway in the line to Maymyo.

The timings for my journey are given below.

Station	Distance*	Arrive	Depart
Mandalay	390	-	6.17
Shan Zu	389	pass	6.25
Myo Haung	383	6.30	6.37
Thoe Gyan	385	6.45	6.46
Tonbo	392	7.13	7.16
Sedaw	396	7.32	7.53
Sa Tu Ta Lun Hto	400	8.27	8.32
Zybingi	405	9.02	9.05
Thondaung	411	9.36	9.37
Anisakan	415	9.51	9.54
Maymyo (Pyin Oo Lwin)	422	10.17	-

* Distances are approximate in miles from Yangon, given by Wikipedia. They decrease between Mandalay and the junction at Myo Haung, then increase towards Maymyo.

As the table shows, the departure from Mandalay, scheduled for 04:00, did not occur until 06:17. I never found out why. The locomotive to haul our train (DF.2048, one of the Bo-Bo-Bo types with automatic couplings and air brakes which seem to be favoured in the mountains) was waiting at the south end of platform 4 when I arrived at 03:20 but the station pilot didn't arrive with our coaches until around six. Then, we had to wait while the porters loaded the waiting freight into the box car and guard's van at the rear. Admittedly, they did this very smartly.

Waiting for the train at Mandalay Central.

It was still too dark to see much as our train made its way to our first stop - Myo Haung. I'd visited this station by car the previous day so there's a separate set of pictures showing this station. This is quite a large junction station with extensive yards. I suspect it was the location of a locomotive depot in steam days - there were plenty of diesel locomotives littered around the sidings during my visits. Up until Myo Haung, we'd been on double track with colour light signals (actually searchlight signals at Myo Haung). Here, we turned left onto the single line which would take us to Maymyo so there were no more colour lights and train control reverted to the methods outlined in the post Manual Control of Points and Interlocking.


Leaving Myo Haung, entering Lashio line.

We passed some pretty impressive rubbish dumps - the Burmese don't seem to have yet fully grasped the concept of recycling. We should have passed the junction with Mandalay's Circle Line but I'm afraid I didn't spot it. I did see the turnouts leading to two short branch lines which I think serve quarries. Elsewhere, points have been controlled from single lever ground frames but, on the line to Maymyo, you can also see counterweighted 'lift-over' point levers, accompanied by the usual battered point indicator and often surrounded by whitewashed stones.


Passing Loop Points at Thoe Gyan. Counterweighted point lever and battered point indicator.

We paused at a couple of small but neat stations at Thoe Gyan and Tonbo before stopping at the more important station at Sedaw, nestling near the mountains we were about to climb. We stopped here about twenty minutes and passengers were able to de-train and examine the food offered by the numerous hawkers who had set up stalls on the platform. There was also plenty of freight to be offloaded here from the last two vehicles. In addition to a passing loop, there was an additional siding here. As we left, I saw two abandoned water cranes, conjuring up images from the steam era of locomotives 'topping off' their water tanks before the assault on the fierce gradients ahead.

The train made the usual slow start away from the station, then the locomotive was 'opened up' for the initial climb to the First Reversing Station. This only took about seven minutes.

Looking back, entering the First Reversing Station. The line to Second Reversing Station climbs away to the right.

When we stopped, the pointsman changed the points so that the locomotive could propel the train to the next reversing station. The guard moved to the footstep on the end of his Guard's Van, which was now the front of the train, so that he could keep a lookout ahead. Although the guard could not be seen, the driver could watch the waving green flag peeking around the Guard's Van.


Being propelled from the First Reversing Station to the Second, with the Guard's Van now leading. The Guard is on the footstep at the end of the vehicle, brandishing a green flag.


Approaching the Second Reversing Station. The Guard is still displaying a green flag.


Looking towards locomotive as the train is propelled into the Second Reversing Station. The line climbing to the Third Reversing Station is on the left. The single lever frame is for a Home Signal. A Home Signal is visible behind the locomotive.

It only took a few minutes to reach the second reversing station and the guard regained his usual position in the Van whilst the pointsman changed and secured the points. Then we were away again, with the locomotive leading. The track clings to the edge of the mountain and, looking down, it was clear how far above the plains we'd already climbed.

The Zig-Zag has already lifted us far above the line we started on.

As you can see from the plan above, the leg from the second to third reversing station is the longest and it took around twenty minutes to cover the distance, the diesel working fairly hard on the front. At first, the jagged rock wall was on our left, with stunning views across the mountains to the right. We passed through two short tunnels and then curled to the right, with the views now appearing on our left. We then passed the third tunnel with the Fourth Reversing Station directly above us! A fairly primitive white-painted elevated ground frame appeared on our right as we entered the Third Reversing Station. Very soon, we stated to move with the Guard's Van leading again as the locomotive propelled its train onto the right hand line to the Fourth Reversing Station. Both arms of the 2-doll bracket signal (an upper quadrant using the strange 'lower quadrant' arms common in Burma) remained 'on' - I assume the pointsman was giving us a green flag on the other side of the train.

Leaving the Third Reversing Station with the Guard's Van leading.

It was only a short distance to the Fourth Reversing Station which is a public station called Sa Tu Ta Lun Hto). Here, a scissors crossover allows ascending and descending trains to pass one another.

Looking back as we pass over the scissors crossover and enter the Fourth Reversing Station with the line continuing to Maymyo on the left.

Although I'd imagined we were in a remote spot, there seemed quite a few passengers waiting to board and we stood for five minutes whilst they sorted themselves out.

The modest station building at Sa Tu Ta Lun Hto.

With our locomotive once again leading, we set off, passing another abandoned water crane. We continued to climb, passing through a couple more tunnels before emerging on a high plateau but still climbing. Another half hour saw us arriving at Zybingi (1884 feet above sea level) and, I admit, after the early start and the excitement of the Zig-Zag, I wasn't paying too much attention. A further half hour took us to Thondaung. There was a rather odd windlass here, which I assume probably operated a home signal but soon we were off again.

Thondaung: An unusual windlass.

Another fifteen minutes took us to the last stop before Maymyo - Anisaken.

Anisaken station building.

Another half hour, and we were running into Maymyo, where my guide and driver were patiently waiting for my delayed train. After Maymyo, the train would then continue to Lashio but, on this occasion at least, without me.

A fascinating, if exhausting, trip.

DF.2048 on arrival at Maymyo.

References

List of railway stations in Myanmar.

My pictures

Railways in Myanmar (Mandalay on earlier visit).
More Railways in Burma (Maymyo on earlier visit).
By Train to Maymyo.
Myo Haung.

Railway Signalling in Burma - Part 6: Signal Boxes with Electrical Interlocking

The British built the extensive metre gauge railway network in Burma.

Around Yangon and on main lines there's double track which is being extended but much of the network is single track with passing loops.

  Whilst the majority of the railway has fairly simple arrangements for the control of trains (see Railway Signalling in Burma: Part 3 - Control of Trains there are a number of areas with colour light signals and power operation of points.

Yangon Central

On my first trip to Burma in 2008, I travelled on the Circle Line in Yangon (see my post The Circle Line, Yangon) and that got me hooked on railways in Burma. Yangon Central was clearly controlled from a Power Box and the signalling was in a familiar, British style. All the signal numbers were prefixed 'R', which I was confident stood for the old city name 'Rangoon'. Although I suspected it was a Westinghouse Brake and Signal installation, it was some years before I got confirmation. Yangon Central had been severely damaged by bombing in the Second World War and I discovered that in January 1946, an order was placed with Westinghouse Brake and Signal Company for a Style 'L' miniature lever frame for Yangon Central (see my post here). I'm ashamed to say, I failed to find the Power Box itself until my visit in February 2013. The building is integrated with the post-WWII station buildings immediately over the north end of the main footbridge. Once spotted, its function is clear.

Yangon Central Power Box hides at the north end of the main footbridge.

Having found the Power Box, the next question was does the 1946 frame survive? Confined to public areas, this was hard to determine but a series of pictures using the power of the zoom on the Fujifilm F770EXR convinced me that the Style 'L' frame is alive and well.

The left hand end of the Westinghouse lever frame.

Insein

Insein is a fairly complex station area fully signalled by colour light or position light signals and with power-operated points. I noted that some signal numbers were prefixed 'R', which I initially assumed meant a satellite interlocking controlled from Yangon's power box. I abandoned that idea when I realised that signals reading away from Yangon were coded 'R' but signals reading towards Yangon were coded 'L'. So my candidate for the Insein Power Box is now the 3-storey building on platform 1 shown below.

Insein station. I believe the upper floor of the building in the background is the signal box. Note the radio mast.

My post Yangon Area Railways describes the Westinghouse Style 'L' miniature lever frame intended for 'Kemmendine' but not used there. Is it possible the frame was adapted for Insein? Yes, it is (there's precedent - the frame ordered for Preston was stored until after WWII and then modified for use at Euston). But, at present, I have no evidence. Can anyone help? The outside equipment at Insein doesn't look very British. Remembering that Myanmar has been largely closed to the West since the military takeover until the recent liberalisation, I believe Chinese involvement is possible - certainly some of the diesel-electric locomotives in use are from China.

Mandalay

Mandalay is the second largest city in Myanmar and it has a large railway station. The present station is quite modern and the whole station area has colour light signals and power operation of points. I'm pretty confident that the 3-storey building at the north end of the station (shown below) is the power box, but I don't know the extent of its control area or, indeed, the type of control panel. Bearing in mind the isolation of Myanmar described above, I believe Chinese supply of the signalling equipment is possible.



Signal Box at the north end of Mandalay Central station.

The next signal box I've identified going south from Mandalay is at Myo Haung, a few miles south. Myo Haung has a reasonably modern 2-storey concrete signal box with a low-slung gabled roof. The area is controlled by searchlight signals with position light subsidiary and ground signals. There is no route indication so I suspect a non-British influence. As at Mandalay, I believe Chinese supply of the signalling equipment is possible. Main line points appear to be power-operated but, to confuse the issue, there's also some point rodding which, if still in use, may mean that Myo Haung retains mechanical interlocking. I'm afraid more information is needed.

Myo Haung, showing signal box (centre) and searchlight signal (right).

Photographs

The Circle Line, Yangon (2013).
Myo Haung.
By Train to Maymyo

The above sets of pictures form part of the Collection Railways in Burma.

Railway Signalling in Burma - Part 4: Manual Control of Points and Interlocking

In the previous article on railway signalling in Burma Part 3 - Control of Trains, I reviewed my understanding of the origins of the systems in use. But I started to work out the methods in use much earlier, from observations I made from the cab of a diesel locomotive described in the post Cab Ride from Katha (and the associated posts and links to pictures).

Single Line Passing Loops

At passing loops, the only signals are normally a splitting home signal at each end of the station, situated at the toe of the points, allowing movements onto either Main or Loop line. The signal arms may be arranged as upper-quadrant or lower quadrant but both types are operated by push rods from the ground, interlocked with the loop points. Normally, a single lever ground frame operates the signal with the appropriate arm 'selected' by an interlock with the points. There are also various 'EIC' lock boxes in between the rails at points and mounted near the base of the signals. Apparently, some areas have elevated, multi-lever ground frames by MacKenzie and Holland but stations and junctions I've seen to date use a single-lever ground frame adjacent to the points, provided with a (usually rather derelict) point indicator.

'Trapped Key' Interlocking

The 1930s article refers to 'Simplex' interlocking which I haven't traced but I assume refers to the 'EIC' equipment. I haven't identified 'EIC' either so if anyone has any information it would be appreciated. By studying my photographs, I'd largely decided how the interlocking was intended to work but then I found a Paper by R. C. Rose titled 'A Survey of Indian Signalling' in the 1924 Proceedings of the Institution of Railway Signal Engineers (available online here) which seemed to confirm the philosophy. 'Trapped Key' Interlocking is still widespread in industrial safety as Castell Interlocks (introduced by James Harry Castell in 1922 adapting ideas first used on the railways).

Consider the simplest form of the railway passing loop. A single line splits into two through the station and then the two lines re-converge into the ongoing single line. There are just two sets of points. To reduce cost, both sets of points are operated local to the switch by hand. In Burma, a Single Lever Ground Frame is provided adjacent to the toe of the points and a Point Indicator may be fitted.

Ywa Taung: Single Lever Ground Frame which operates the points via the 'L' crank and Drive Rod on the right. Note that the long arm of the 'L' crank is adjustable, allowing the 'throw' to be adjusted. The Point Indicator on the left is operated directly from the points via a separate delector rod.

The Station Master has two Pointsmen who can be despatched to the handpoints to set them as required. But if the pointsmen make errors, trains can arrive on the wrong track, departing trains can 'trail' incorrectly set points or points can be changed as a train is passing over them.

So, various forms of key-locking apparatus were produced with the aim of giving the Station Master confidence that his instructions had been correctly carried out. The EIC Locking Box is one method of establishing this confidence, using the 'Trapped Key' method.

Detail of EIC Locking Box fitted between the rails on the Loop Points at the south end of Naba station. The Loop Handles on the two lock slides are at opposite ends of the box. The interlocking key is clearly visible on the left of the box. (In addition, the points have been clipped in the normal position - the point clip is on the left hand stock rail).

View of another Point Locking Box fitted between the rails (this one at Ywa Taung). Note the slot on the right of box for the interlocking key. There are two lock slides with loop handles. Each switch rail appears to have a separate detector blade.

What I've called the 'Lock Slides', manually moved in and out using the loop handles, serve the function of locking the points normal or reverse. In normal British Practice, there is one 'Lock' which can pass through either of two notches in the Point Stretcher. But in the EIC Locking Box, there is one notch, allowing one 'Lock Slide' to pass through the notch when the points are set to 'Main' and the other 'Lock Slide' to pass through the notch when the points are set to 'Loop'. As a further refinement, on some designs, each switch rail has its own notched detector blade so that both switch rails are separately detected.

If the 'Main' 'Lock Slide' can be pushed in, the 'Main' Key in the side of the Lock Box can be extracted. Once the Key is removed, the 'Lock Slide' cannot be pulled out and the points are held in the 'Main' position until the 'Main' Key is re-inserted. In a similar way, the 'Loop' Key can only be removed if the points are proved in the 'Loop' position.

Ignoring the complication of signals, if two Pointsmen each present 'Main' Keys to the Station Master, he may be confident that the points are set for the 'Main' at both ends of the loop.

In India, a further development allowed splitting home signals to be worked from a ground frame on the platform. In Burma I've not (yet) seen such an arrangement but at many passing loops splitting home signals are provided but worked locally.

Interlocking between Loop Points and Push Rods for selecting the signal arms of the Down Inner Home at Naba. Note the two 'EIC' lock boxes.

My Pictures

Burma: Control of Points and Interlocking.

The above set of pictures is part of a Collection Railways in Burma.

Railway Signalling in Burma - Part 5: Signal Boxes with Interlocking Frames

The British built the extensive metre gauge railway network in Burma.

Around Yangon and on main lines there's double track which is being extended but much of the network is single track with passing loops.

  Whilst the majority of the railway has fairly simple arrangements for the control of trains (see Railway Signalling in Burma: Part 3 - Control of Trains there are some signal boxes with conventional interlocked mechanical lever frames. I've seen two at Bago and two at Kyee Myin Daing on the Circle Line in Yangon.

Bago

Bago is on the double-track main line from Yangon to Mandalay and has two mechanical signal boxes - Bago South at the Yangon end of the station and Bago North, controlling the junction with the single line to Mawlamyine at the other end. The area has mechanical operation of points and semaphore signals.

Signal Box at south end of Bago Station.

Signal Box at north end of Bago Station.

I've only seen these boxes from a passing train or, in the case of Bago South, from a roadbridge but more details of both can be found on the International Steam Pages site here ("The Old Order Changeth" by Rob and Yuehong Dickinson) and here (Melvin Haigh's photographs on Rob Daniel's interesting 'Flickr' site).

Kyee Myin Daing

Kyee Myin Daing (called 'Kemmendine' by the British) is an important station on the Circle Line to the West of Yangon Central and retains two mechanical signal boxes. This is rather odd because in January 1946, an order was placed with Westinghouse Brake and Signal Company for a Style 'L' miniature lever frame for Kemmendine (see my post here). I've not been able to find out what happened to this frame although a hunch is that it might have been deployed instead a few stations up the line at Insein. The area has mechanical operation of points and retains some semaphore signals but the main line signals have been converted to colour light signals (the rest of the Circle Line has colour light signals), necessitating electrical detection of facing points in the main line. Whilst the rest of the Circle Line is track circuited, the facing points at Kyee Myin Daing retain locking bars on the facing points and track circuits do not seem to be provided in the area. The box at the north end has a gabled roof and spartan appearance, as shown in the picture below.

Mechanical signal box, north end of Kyee Myin Daing. The building next to the track in the foreground is probably a relay/equipment room since the main running lines have colour light signals.

The box at the south end is adjacent to the clockwise Circle Line and has a hipped roof. I don't yet have a picture.

Mechanical Operation of Points

Points are operated mechanically using steel tubes (as some British practice), as shown below.

Point rodding, showing tube couplers and vertical roller frames at Kyee Myin Daing.

Mechanically operated facing points at Kyee Myin Daing, with separate facing point bolt and locking bar (on left rail). The grey box on the left is electric point detection to control the 2-aspect colour light signal with two line-of-lights route indicators in the background.

Photographs

  Bago Station.
By Train to Maymyo.
The Circle Line, Yangon (2013).

The above sets of pictures form part of the Collection Railways in Burma.

Back to Yangon

Events of Friday, 22nd February 2013

The Aureum Palace Hotel provided a good cooked breakfast so, by the time my guide and driver arrived, I was checked out and ready to leave.

The Lobby of the Aureum Palace Hotel, with Reception on the left.

We returned to the Mandalay-Yangon Highway by backtracking along the route we'd travelled on our arrival the day before. I'm not a very good car passenger, so I found the long journey south rather tiring. I anxiously counted down the distance markers (provided every 100 metres, I think). Once again, there was very little traffic.

The Highway south.

There was a Rest Stop about halfway to the end of the Highway, where I expected us to stop but, after some hesitation by the driver, we kept going. I think he missed the turn. Shortly after, we did turn off to reach a modern petrol station I'd spotted a few hundred yards from the highway.

The petrol filling station, just off the Highway. Ours was the only vehicle on the forecourt.

As we approached distance marker '0', I sadly realised that it merely denoted the end of the Highway. We were still a good way from our destination and, although we were still travelling on a dual carriageway, because of all the local traffic, our speed had reduced. I thought that we were near Bago and, after a few minutes, I had confirmation. The nearer we got to Yangon, the worse the traffic became. Our driver attempted some diversions but it seemed that these alternative routes were known to all the other drivers.

I'd agreed with the guide that, on the way to the Park Royal Hotel where I was to spend the night, we'd stop at the Taw Win Centre on Pyay Road. This would allow me to return to the Tab Book Centre where, on my previous visit, I'd purchased some interesting books written in English on Burmese History. That earlier visit is described here. Eventually, we reached the Taw Win Centre and, once we'd located the bookshop, I spent a hectic time going through the bookshelves and selecting a number of books for purchase. We then made somewhat better time on the last part of the journey to the Park Royal Hotel. I released my guide and driver for the day, arranging the final transfer from the hotel to the airport on the following morning.

I'd intended to just relax in the hotel but, after a shower and a change of clothes, I thought it a pity not to find out a little more about the railway - Yangon Central Station was only ten minutes walk away and I had a tantalising view of the station buildings from my room.


The view of the gilded towers of Yangon Central Station from the
Park Royal Hotel.

So I walked to the station, took some more pictures around the station to pore over on my return and decided to walk east a little way on the road parallel to the railway on the north side. The road quickly deteriorated into a track between a number of fairly humble wooden buildings. I was definitely "on the wrong side of the tracks". Most of the buildings had rusting, corrugated galvanised iron roofs, but at least one (in need of repair) was tiled.

Roof tiles on a dwelling near Yangon Central station.

I was intrigued, because the design was very similar to tiles I'd seen in Myanma Railway Museum the day before.

Tiles exhibited in Myanma Railway Museum.

The track continued, weaving between wooden homes before coming to an abrupt stop at a brick wall dividing the houses from the railway. A home-made bamboo ladder was leaned against the wall indicating that it was no 'dead-end' to the locals.

View of the railway from the 'dead-end'.

There was no ladder on the railway side of the wall so, although I could see the footpath worn in the grass by passing feet, I decided it might be unwise to risk injury on the evening before I flew home. I back-tracked and continued east on a more major road, before turning right to take pictures from the bridge where the road crossed over the railway.

Then I continued east on the south side of the railway along the main road to Pazundaung, with multi-storey buildings on both sides of the road providing commercial premises on the ground floor and apartments above. It took me a few moments to realise the function of the many thin ropes which dangled from the upper stories, necessitating frequent avoiding action on my part. Each rope was weighted with a bulldog clip or, in one case, a small moulded plastic basket. Of course! They were "letter boxes" allowing residents to collect mail or other small deliveries without the tiresome necessity of descending perhaps seven floors and then climbing up again.


Ingenious letter boxes.

Along this road, part of the width of the pavement had been built-up a foot or more above the road, forming a causeway. Here, the intention was clear - the road was clearly subject to periodic flooding and the causeway gave some protection to ground floor premises.

Turning left off the road, I came to the footbridge crossing the railway at Pazundaung. The station buildings are actially located on the footbridge. The bridge provided a good vantage point for a few more photographs. By this time, I didn't relish the walk back to my hotel, so I decided to purchase a ticket and return by train (giving more photographic opportunities). The booking clerk called for the stationmaster who had quite good English. Of course, I had to pay one U.S. Dollar for a 'Foreigner Ticket' to travel just one stop - the same fare would have taken me all round the Circle Line!

I was soon back at Yangon Central Station where I'd just enough energy to take a few more pictures. The signalmen at the Power Box were clearly intrigued by a European woman taking photographs and they all posed on the balcony.

Yangon Central Power Signal Box. All the signalmen came onto the balcony to have their picture taken.

And so the holiday was almost over. The following morning, I was to fly by Thai to Bangkok, change, and make the long flight back to London. Perhaps not a trip to everybody's taste but, for me, another wonderful set of experiences.

My Pictures

Aureum Palace Hotel, Naypyitaw.
Myanmar's Highway.
Park Royal Hotel, Yangon.
Yangon (2013).
Yangon Central Station.
Pazundaung Station.
By train: Pazundaung - Yangon.

An Evening in Napyidaw

Events of Thursday Evening 21st February 2013

We'd driven down from Mandalay that morning and spent the afternoon looking for, and finally looking at, the railway museum, as described here. By the time we arrived at the hotel, I was shattered and envisaged a quiet evening.

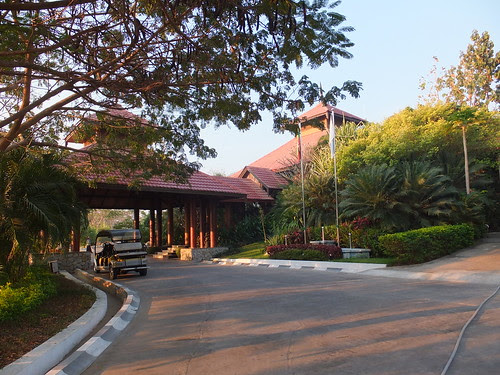

Entrance to the Lobby at the Aureum Palace Hotel, Napyitaw.
